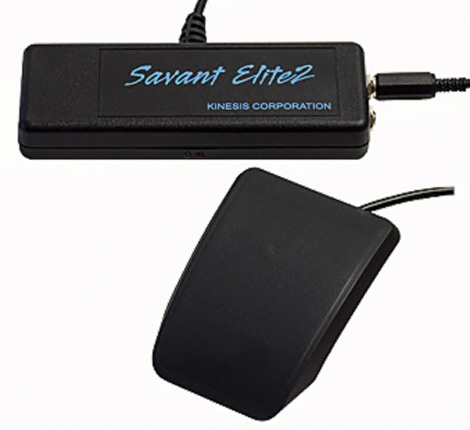

Our Savant Elite2 Control Module and Single foot pedal is an excellent ergonomic enhancer to reduce hand and arm strain and repetition from mouse clicks and awkward key combinations. The 2-jack control module bundled with our Single pedal is ideal for situations where you want the smallest possible pedal, or where you need the pedal away from the control module.

The Control module has a 9 foot USB cable connecting to the computer, and the foot switch has its own 10 foot cable connecting to the control module with a mini-phono plug.

Factory programming provides left and right mouse click actions, and it's ideal for any user who wants to activate mouse clicks or offload one or two keying tasks.

Savant Elite2 uses generic HID (human interface device) drivers provided by the operating system. It can be operated and programmed without any special drivers in most environments supporting USB devices, including: Windows, Mac OS X, Linux, Android and Chrome.

In Play Mode the Savant Elite2 emulates a generic keyboard and mouse. In Programming Mode it emulates a generic keyboard and removable disk.

Programming Mode requires generic OS support for a removable disk, plus a text editing program or app that can edit and save a file as “plain text” or “simple text.” Most word processing and text editing programs have this capability.

• Plug and Play
• No special drivers needed to use or reprogram
• Pedal is front hinged, low-profile
• Pedal is force-adjustable
• Pedal actions defined by a tiny, editable text file residing on a memory chip
  within the device
• 2 jacks Factory Pre-configured to perform mouse button actions:
  - Jack 2 (front jack) - Left mouse click
  - Jack 1 (rear jack)- Right mouse click
• Program any key action and/or macro
• Re-programmable on any computer or tablet with a USB port
  to perform keyboard actions, macros, or to re-assign mouse button action
• Recessed programming switch accessible from underside of unit
  (except on waterproof units)
• Programming Mode also accessible by holding a pedal briefly while
  connecting USB cable to open virtual removable disk
• Pedals are front-hinged and rounded for easy triggering,
  made from black, glass-reinforced nylon
• External green and red status LEDs

• Control module width: 5.5 inches
• Control module depth : 2.0 inches
• Control module height: 1.0 inches
• Control module Cord length: 9 feet 1 inch
• Foot Pedal Width: 2.6 inches
• Foot Pedal Depth (front to back): 3.5 inches
• Foot Pedal Height: 1.25 inches
• Foot Pedal Color: Black
• Foot Pedal Cord length: 10 feet

• Compatible with Windows: XP and newer
• Compatible with Mac: OS X
• Compatible with Linux
• Compatible with Android
• Compatible with Chrome
• USB Connection

Macintosh OS X notes: OS X doesn’t support middle mouse button without using a third party driver such as that found at www.usboverdrive.com. Also, modifier actions from one USB device cannot modify the input of a second USB device due to limitations designed into the Apple operating system. Example: Shift, Control, Command, or Option keystrokes programmed into the foot pedal cannot modify the input of a separate USB keyboard or mouse. However, a key sequence like ‘Cmd-W’ or ‘Cmd-Shift-left arrow’ will work on a Macintosh if the entire sequence of keystrokes has been programmed into the foot pedal.
