Whether you are a Graphic Designer, an Architect, a Web Manager, or a Two-finger Typist, proficiency in your software requires rapid input. Keyboard Macros and Hot Keys offer the shortest path to action, and the X-Keys provide a clearly labeled, physical location for the complex or redundant functions so you don't have to think about them.

The X-Keys let you focus on the project instead of the process.

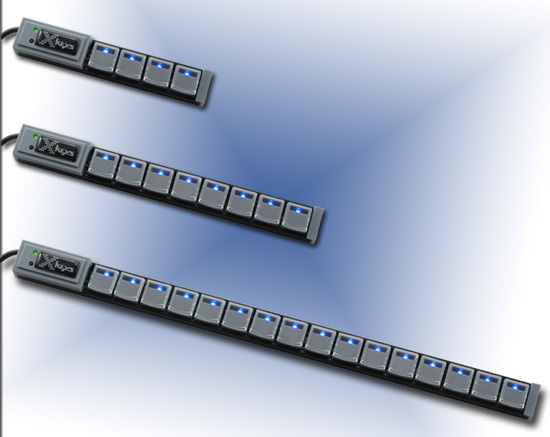

4, 8 or 16 Key Programmable Key Sticks

12 Key Programmable Keypad with Backlighting and Built-in Joystick

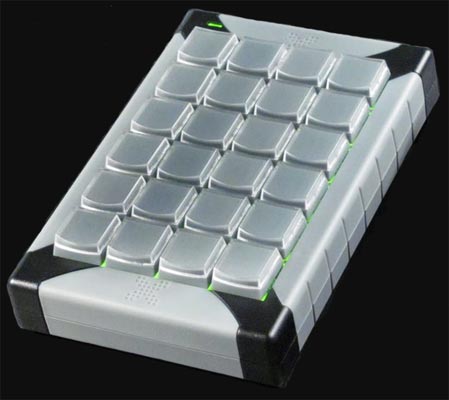

24 Key Programmable Backlit Keypad

12 Key Programmable Keypad with Backlighting and Jog & Shuttle

Programmable Foot Switch for Keystrokes or Mouse Clicks

60 Key Programmable Keyboard with Backlighting

80 Key Programmable Keyboard with Backlighting

128 Key Programmable Keyboard with Backlighting

USB Extender

3 Port Interface Switch USB to TRRS

12 Port Programmable Interface Switch USB

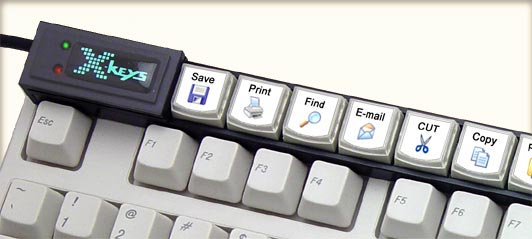

• Available in 4, 8 or 16 Programmable Key Versions
• Relegendable keys add control anywhere you need it
• One button access to shortcuts
• Easily create your own macros
• Suitable for mounting above a Keyboard or under a Monitor
• Create an interactive display control
• Add electronic control to a guitar
• Switch a KVM accessory
  (KVM specifically designed to work with KVM switches. Easy to program or duplicate & no software required to operate)
• Addressable Blue Backlighting for each key
• Programs in a language every computer understands -- keystroke
• Backlighting illuminates key legends in low light environments
• Hardware Mode features support for
  Keyboard, Mouse, and Joystick emulation
• Two layers - user selectable toggle and/or shift keys
• Durable low profile keyswitches, with Tactile feedback
• Any OS via USB HID
• Windows Compatible: XP and Newer including Windows10
• Mac Compatible: OS X 10.4 - 10.10
• Connection: USB
• Cord length: 54 inches


• XKS4USB/XKS4KVM Dimensions: 5.25 x 0.875 x 0.625 inches
• XKS8USB/XKS8KVM Dimensions: 8.25 x 0.875 x 0.625 inches
• XKS16USB/XKS16KVM Dimensions: 14.25 x 0.875 x 0.625 inches

Legends

Clear keycaps protect your legends and let you find your shortcuts and macros with a glance Included interchangeable preprinted/blank legend sheets make it easy to hand inscribe legends for your keys

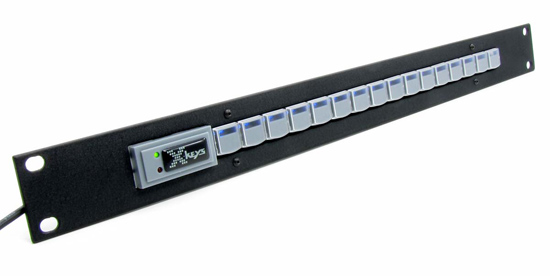

Rackmount for Keystick

Our 16-keys Stick Rack Mount Kit is the perfect way to integrate the ease and reliability of X-keys into your equipment set-up. Laser cut from high quality powder coated steel, the rugged design will blend with your other rack mounted equipment seamlessly. Kit includes: mounting plate, spacers, long screws, back bracket, nuts, instructions.

Keystick Accessories	Part Number	Sale
Rack Mount Kit for 16 Key Programmable Stick	XKSMOUNT	$23.70
USB Connection Extender Extends distance from USB X-keys Stick to the computer up to 150 feet (via Cat 5 cable not included)	AXKUEXT	$19.95

Click for Shipping/Handling charges.

Every effort is made to ship Same Day order is received by 3:00 pm MST.

To place an order please call us at 928-639-0161,
or complete the Secure "Order Form" by clicking the Order Form button below.

For more product information please email Info@Fentek-Ind.com or
complete "InfoRequest" by clicking the Info Request button below.

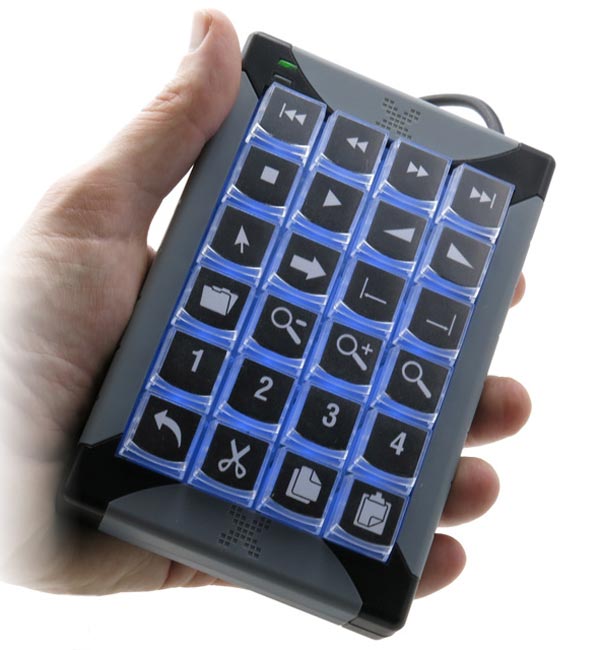

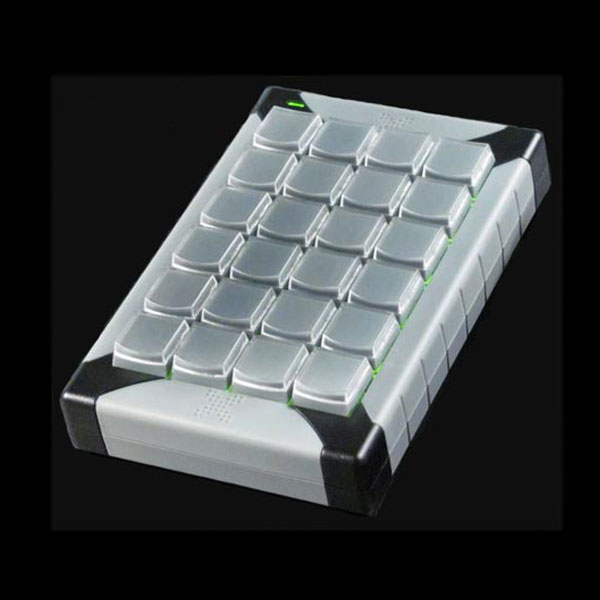

• 24 Programmable Keys
• One button access to shortcuts
• Programmable keys to trigger macros, shortcuts
  and applications, select tools or open files or directories
• Programs in a language every computer understands -- keystroke
• Emulation Modes HID keyboard, HID mouse, HID game controller
• Memory EEPROM, non volatile memory
  (X-keys retains memory for over 200 years)

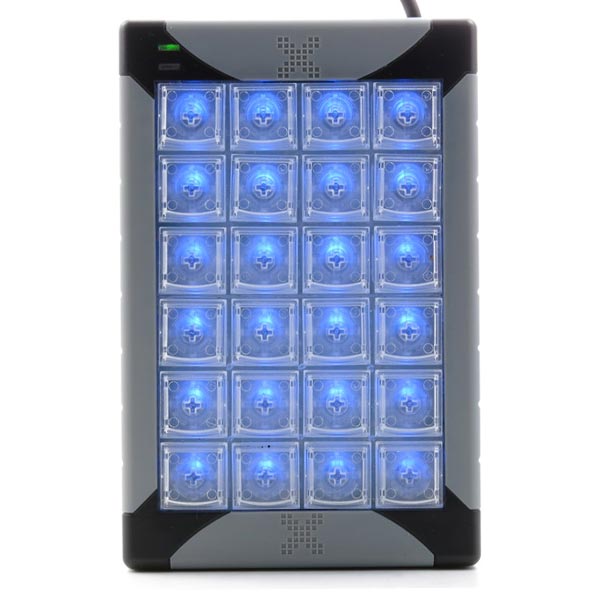

• Backlighting:
  KP24XKUSB - Red and Blue, individually addressable
  KP24XKUSBW - White
• Two layers - user selectable toggle and/or shift keys
• Includes: Double-keys (One Horizontal, Two Vertical)
  Key Puller
  Legend Sheet
  Two angled feet

• Rubber dome low profile keyswitches guaranteed for more than
  1 million operations (key stem is compatible with Cherry MX)
• Dimensions: 5.8 inches x 3.8 inches x 0.94 inches
• Compliant: FCC Class B, CE, RoHS and WEEE
• Cord length: 56 inches

• Compatible with Windows: XP and Newer including Windows10
• Compatible with Mac: OS-X 10.4 - 10.10
• Compatible with any OS via USB HID
• Compatible with Android 4.0 and newer tablets
• Can send USB commands to iOS devices
• KVM model specifically designed to work with KVM switches. Easy to program or duplicate & no software required to operate
• Includes: Programming Software for Windows and Mac
  (must program using Windows XP - Windows8 or
  Mac OS X 10.4 - 10.8)
• USB Connection

Legends

Clear keycaps protect your legends and let you find your shortcuts and macros with a glance Included interchangeable preprinted and blank legend sheets make it easy to add legends for your keys

Every effort is made to ship Same Day order is received by 3:00 pm MST.
